See a real Victorian greenhouse project with RAL7021 dark grey frame, electric skylights, and sunshades. Finished spraying and ready for Australia.
RAL7021 Spraying Completed for Victoria Greenhouse

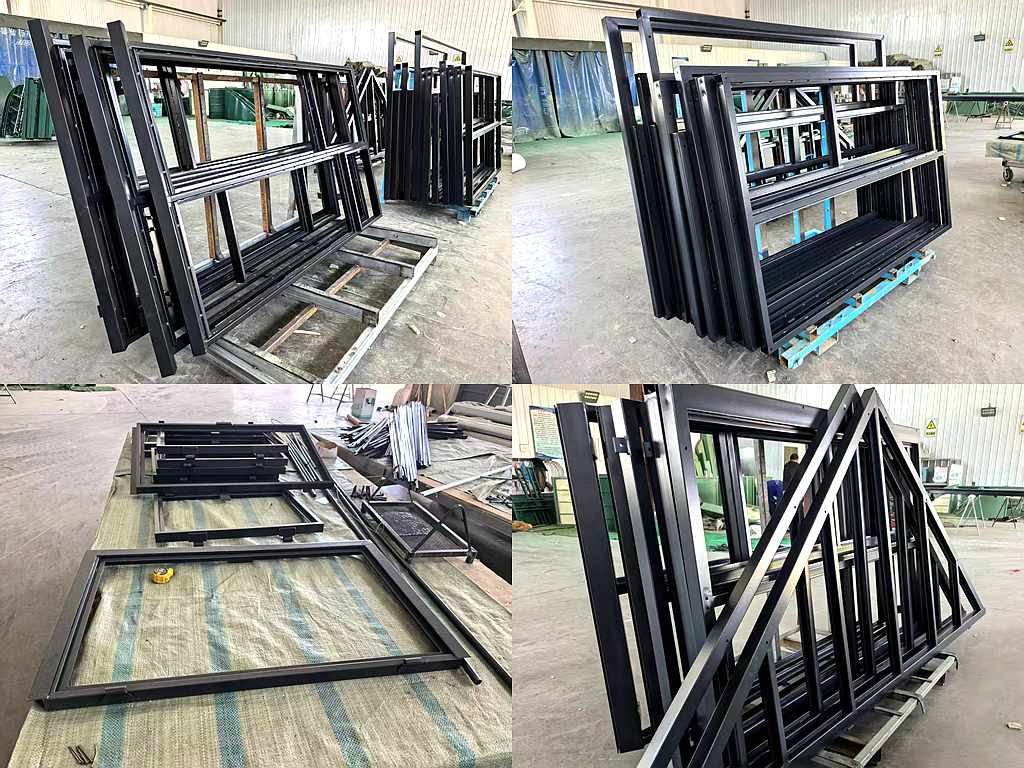

A new project has just reached an important stage. The RAL7021 dark grey coating is now fully finished. This is for a customer based in Victoria, Australia. The greenhouse follows the classic Victorian greenhouse design. It looks elegant and works well for Australian weather.
The frame now shows a deep charcoal grey color. RAL7021 is also known as dark grey or dark charcoal. It gives a modern but timeless look. Many homeowners prefer this shade because it hides dirt well. It also matches both traditional and modern homes. The spraying process was done carefully. Every corner received an even coat. No drips or thin areas remain.

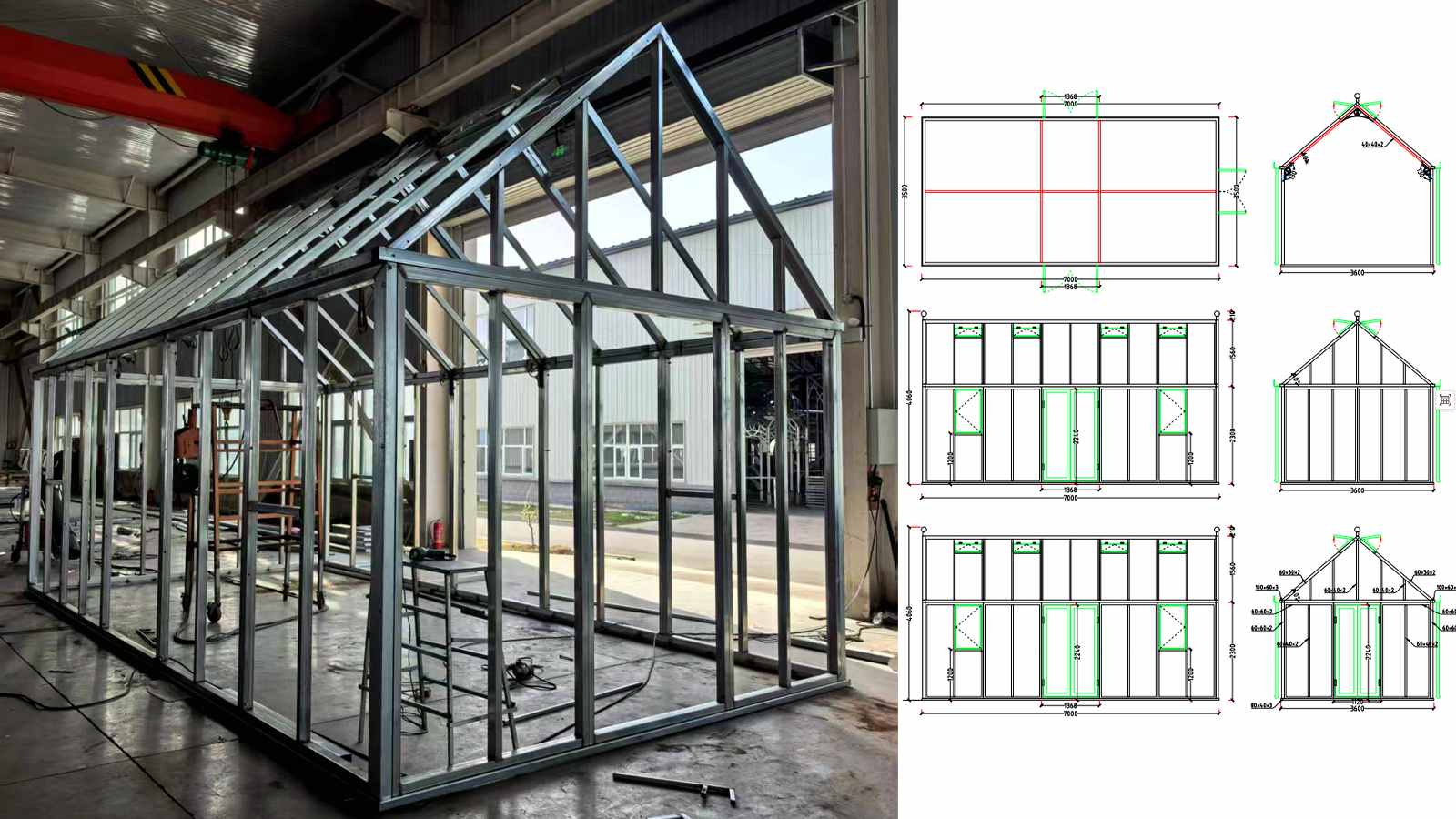

This Victorian greenhouse is not small. The size is 7 meters long, 3.6 meters wide, and 4.06 meters high. That creates enough headroom for tall plants and comfortable movement. The customer wanted a spacious structure. The height allows warm air to rise without making the lower area stuffy. Ventilation becomes easier with this design.
Eight Electric Skylights Installed on This Greenhouse
One of the standout features is the eight electric skylights. Each skylight opens automatically. The customer can control them with a switch or a remote. When the temperature rises inside, the skylights release hot air. This keeps plants from overheating. Fresh air flows in from the sides and exits through the top. That is a natural cooling method.
The skylights are placed evenly along the roof ridge. Two on the left side, two on the right, and four across the middle. This layout ensures cross ventilation. No stale air stays trapped in any corner. The electric motors are quiet and reliable. They have been tested before leaving the workshop. Rain sensors can be added later. But the customer chose to operate them manually for now.
Electric Sunshades Provide Extra Protection
Heat and glare are common problems in Victoria. Summers can get very bright. Too much direct sunlight damages sensitive plants. It also makes the greenhouse uncomfortable to enter. To solve this, the customer ordered electric sunshades. These shades are installed under the skylights. They roll down when needed.
The sunshades block up to 70% of UV rays. They still let through soft, diffused light. Plants continue to grow well without getting burned. The shades are also electric. One button controls all eight at once. Or the customer can operate them in pairs. The fabric is weather resistant. It does not trap moisture underneath. Mold will not form easily.
Both the skylights and sunshades share the same control box. Wiring has been completed inside the frame channels. No loose cables hang outside. This keeps the greenhouse looking clean and professional.
Why RAL7021 Fits the Victorian Style
Victorian greenhouses are known for ornate details. They have pointed roofs, ridge lines, and decorative finials. A bright white or green color is traditional. But modern customers often pick darker shades. RAL7021 dark grey offers a strong contrast against glass. The glass panels reflect the sky, while the frame stays grounded.
This color also absorbs some heat. During cold Victoria winters, that small heat gain helps keep frost away. The frame does not stay ice cold for long. Yet the coating is heat resistant. It will not bubble or fade under strong Australian sun. The powder coating process used here follows a high standard. Salt spray tests were done for 500 hours. No rust appeared.
The customer visited our factory through a video call. They watched the spraying process live. They approved the color match under natural light. RAL7021 looks slightly different indoors versus outdoors. Under sunlight, it shows a slight matte finish. Under clouds, it appears deeper. The customer preferred this changeable look.
Project Timeline and Next Steps
Spraying finished three days ago. Then the quality team inspected every beam. No chips or uneven spots were found. The frame is now being packed for shipping. Each piece is wrapped in foam and then cardboard. Glass panels are not included in this shipment. The customer will use local glass to save on freight costs.
The electric motors and controllers are packed separately. Waterproof connectors are attached. The customer received a wiring diagram last week. They have a local electrician ready for installation. The sunshade fabric is rolled onto aluminum tubes. These tubes click into place with simple brackets.
Shipping to Victoria will take about 35 days. The port of Melbourne is the destination. From there, a truck will deliver to the customer’s property. Assembly is expected to take three days with two people. The customer has built a concrete base already. That base matches the 7 by 3.6 meter footprint.
Customer Feedback During Production
Communication with this customer was frequent. They sent photos of their garden. The greenhouse will sit next to a red brick house. RAL7021 was chosen to match the roof tiles. They also asked for extra bracing because Victoria has strong winds. We added four corner brackets at no extra cost.
Midway through production, they requested a change. They wanted the sunshades to stop at halfway as a default. That was adjusted in the control board settings. Now a single press sends the shades to 50%. Holding the button gives full closure. Small changes like this make the final product much better.
The customer is happy with the spraying result. They saw a sample panel first. Then they confirmed the full order. Trust was built through step by step updates. This is why we share photos during coating. Mistakes are caught early. Changes are made before shipping.
Performance Expectations for Victoria Climate
Victoria has four distinct seasons. Summer temperatures can exceed 40 degrees Celsius. Winter nights sometimes drop to 0 degrees. The greenhouse with RAL7021 frame performs well in both extremes. The dark grey coating helps warm the structure slightly in winter. In summer, the electric sunshades and skylights work together.
Hot air rises to the ridge. The skylights open automatically if a thermostat is added. The customer chose manual operation for now. But the wiring is ready for a future sensor upgrade. The sunshades block direct radiation. The glass panels will stay cooler. Plants like tomatoes and orchids will not experience leaf burn.
Condensation is another concern. The roof has a slight pitch. Water droplets run down the glass and into a gutter. The gutter is also coated in RAL7021. It drains to a downpipe. The customer will connect that to a rain barrel. This recycles water for irrigation.
Why Follow This Project Type of Post
We are posting this update because many customers ask for real examples. A Victorian greenhouse with RAL7021 finish is not common. Showing the spraying completion step gives confidence. The electric skylights and sunshades add modern function. The size is larger than typical kits. But it proves that custom sizes are possible.
You can see how the project moved from raw metal to finished coating. Then to packing and shipping. We will post another update when the customer sends installation photos. That will include the greenhouse standing on their property. You will see how the 8 electric skylights look from inside. And how the sunshades filter the Australian sun.
If you are planning a similar greenhouse, note the details. The length is 7 meters. The width is 3.6 meters. The height is 4.06 meters. Those dimensions create a roomy interior. The RAL7021 dark grey hides fingerprints and dust. The electric features save effort. The Victorian style adds charm.
Final Words Before Shipping
The packing list is complete. Four pallets hold the frame. One pallet holds the electric motors, controllers, and sunshade tubes. All screws and brackets are in labeled bags. The customer will receive a USB drive with assembly videos. No paper manual is included to save waste.
Shipping marks show the customer’s name and order number. The boxes say “Victorian greenhouse – RAL7021 – 8 skylights.” Customs paperwork lists the materials as aluminum frame and electric parts. The value is declared accurately. The customer arranged their own shipping agent. We only need to load the pallets onto their truck.
This project shows what a modern Victorian greenhouse looks like. The dark grey frame contrasts with bright glass. The electric skylights open wide. The sunshades drop silently. For the customer in Victoria, Australia, this will become a favorite garden space. Growing plants will be easier. Spending time inside will be more comfortable. We look forward to seeing it assembled.
Check back in about 6 weeks. The next post will show the installation process and the first plants inside.
